Flood Light On Off Function Sensorr 220V-240V Input

  • 1
  • 2

Brand Name : Merrytek

Model Number : MC032S

Certification : CE & R&TTE

Place of Origin : China

MOQ : Stop production, not available.

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 20,000pcs per Month

Delivery Time : 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks

Packaging Details : Packed in bubble bags firstly, and then reinforced with carton for outer packing

Rated load : 400W (inductive), 800W (resistive)

IP rating : IP65

Input Voltage : 220-240Vac 50Hz

Detection Zone : Max(D×H):12m×6m

HF system : 5.8GHz ±75MHz, ISM wave band

Approval : CE

Operation temperature : -20℃~60℃

Function : On-off control

Production name : Mirowave motion sensor

Cover color : Black or white

Contact Now

Stop production, not available.

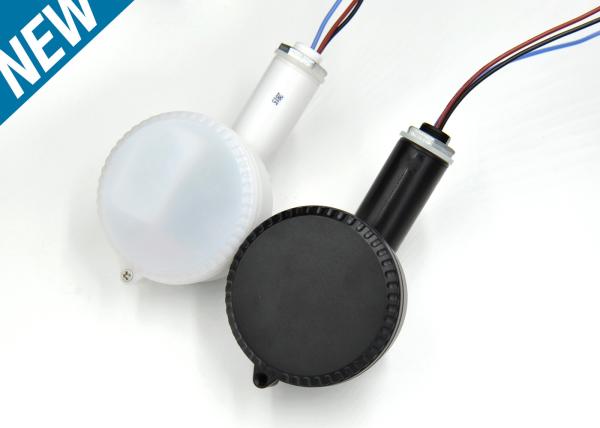

MC032S IP65 Waterproof Microwave Motion Sensor for Flood Light Instead of PIR Sensor, 220V - 240V Input


Description:

MC032S is special IP65 motion sensor for flood light to instead of PIR sensor.And it's also can be used in specail tube.

MC032S is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.

Features:
1. Desing for flood light to replace PIR sensor
2. IP65,support stand-alone installation
3. Automatic switching based on motion and ambient light level.
4. Compact size makes it suitable to fix within most luminaires.
5. 4-pole press-in terminal (L, N, N,L′),easy assembly
6. Zero-crossing point operation helps protect the sensor against in-rush current..
7. 5.8GHz high frequency microwave(C-Band license-free operation)
8. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

Function:
ON-OFF function

Wiring :
Flood Light On Off Function Sensorr 220V-240V Input

Detection Patter:
Flood Light On Off Function Sensorr 220V-240V Input

Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

Inductive :400W,Resistive : 800W

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-20℃~60℃

Hold time

10s / 30s / 90s / 3min / 20min / 30min

Detection sensitivity

10% / 25% / 50% / 75% / 100%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years




Flood Light On Off Function Sensorr 220V-240V Input
Applications:
Stairwell, Corridor,Balcony, Pathway, etc

Flood Light On Off Function Sensorr 220V-240V Input
